PP pleated filter cartridge
Provide economical particle removal filtration for pharmaceutical and biopharmaceutical applications
- Allows high flow and low pressure drop, lowering cost of ownership
- Provides biosafety insurance and global regulatory compliance
- pH 1~14, allows use in a range of chemicals including acids and bases
APPLICATIONS
PP pleated filter cartridge
Pharmaceutical
- Facility water
- Sterile filtration for LVP/SVP/API
- Buffers
- Bulk chemicals
- Column protection
- Intermediate clarification
Specifications

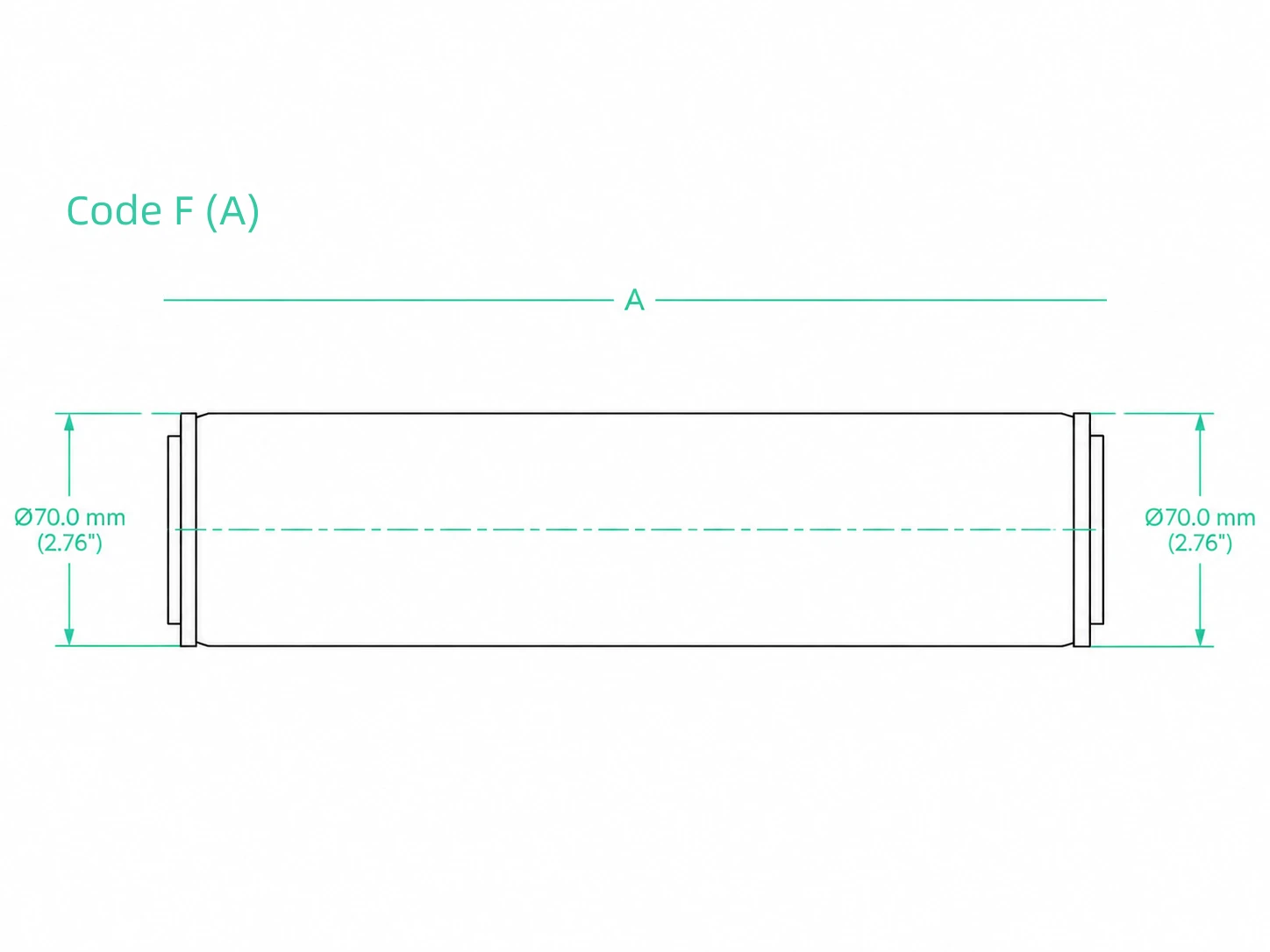

Drawings
| Length | Code 0 (A) | Code F (A) | Code 5 (A) | Code 7 (A) |
|---|---|---|---|---|
| 5" | 160 mm (6.3”) | 137 mm (5.4”) | – | – |
| 10" | 273.5 mm (10.8”) | 254 mm (10.0”) | 314 mm (12.4”) | 316 mm (12.0”) |
| 20" | 518.5 mm (20.4”) | 500 mm (19.7”) | 559 mm (22.0”) | 561.0 mm (22.1") |
| 30" | 763.5 mm (30.1”) | 745 mm (29.3”) | 804 mm (31.7”) | 806 mm (31.7”) |
| 40" | 1008 mm (39.7”) | 990 mm (39.0”) | 1048 mm (41.3”) | 1050 mm (41.3”) |

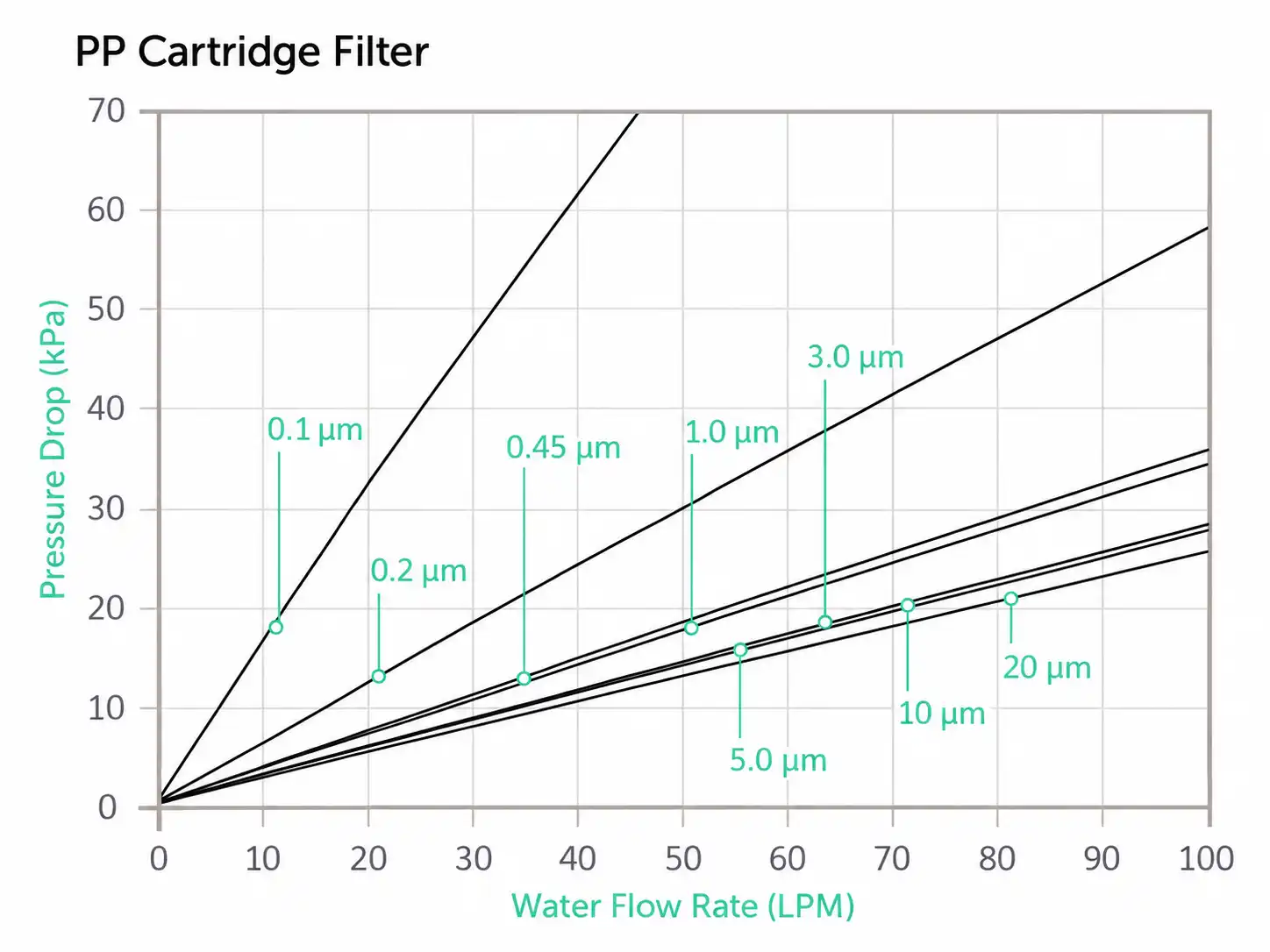

Performance Data
Specifications
Retention rating
- 0.1, 0.2, 0.45, 1.0, 3.0, 5.0, 10, 20 µm
Materials
- Membrane
- Support
- Sleeve, core, top, and end caps
- O-ring
- Gasket (Code F)
- Sealing technology
- Polypropylene
- Polypropylene
- Polypropylene
- Silicone
- Silicone
- Thermal bonding without adhesives
Normal effective filtration area
- ≥0.22 m2 for 5”
- ≥0.45 m2 for 10”
Integrity test (0.22μm,0.45/0.22μm)
- Minimum bubble point at 25°C (77°F)
- Maximum diffusion flow at 40.6 psi(2800 mbar) at 25°C (77°F)
- ≥50.7 psi (3500 mbar)
- 5" cartridge: ≤15 mL/min
- 10" cartridge ≤30 mL/min
Maximum operating conditions
- Maximum operating pressure:
-
Maximum forward
differential pressure: -
Maximum operating
temperature:
- Capsule: 5.5 bar @ 25°C (77°F)
-
Capsule: 4.2 bar @ 25°C (77°F), 2.0 bar @ 60°C (140°F)
Cartridge: 4.2 bar @ 25°C (77°F), 2.0 bar @ 80°C (176°F) -
Capsule: 60°C (140°F)
Cartridge: 80°C (176°F)
Multiple sterilization cycles
- 20 cycles of steam-in-place (SIP) sterilization (cartridge only) or autoclave, 30 min at 127°C (261°F)
Endotoxin releasing
- <0.25 EU/mL as determined by the LAL test
TOC
- <0.5 mg/L after a water flush of 11 L/10" cartridge
Conductivity
- ≤1.3 µS/cm after water flush of 11 L/10" cartridge
Particle release
- Meets the requirements of WFI set by USP
NVR
- <50 mg/10” cartridge, after autoclave and a 24-hour extraction in 50% ethanol with vibration
Material toxicity
-
All components meet the requirements of the USP <88> Reactivity Test for Class VI Plastics
Filters meet the requirements of USP <87> Biological Reactivity Tests in Vitro Cytotoxicity
Food contact material
- (EU) No. 1935/2004, (EU) No. 10/2011
Quality
- Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system
