PES Liquid Capsule Filter
Delivers superior throughput for broad challenging feed streams while minimize product loss in sterile filtration
- Dual layer and highly asymmetric PES membrane minimize pressure build-up while processing large volume fluids
- Structure design helps minimize dead zone which can cause loss of high value products
- Broad chemical compatibility, pH 1~14, allows use in a range of chemistries including acids and bases
- Product has been rigorously validated to product specification and industry standards with comprehensive documentation to support compliance
- Gamma capability ensures that integrators can connect these filters into any customer-specific, single-use assembly and provide it as a sterile, final assembled product
APPLICATIONS
PES Liquid Capsule Filter
Pharmaceutical
- Cell culture media and additives
- Bioburden or sterile filtration for various process fluids
- Process intermediates in mAb, vaccines, etc.
- Column or downstream unit protection
- High concentration buffers
- Bulk drug substances
- Protein solutions or formulations
Specifications

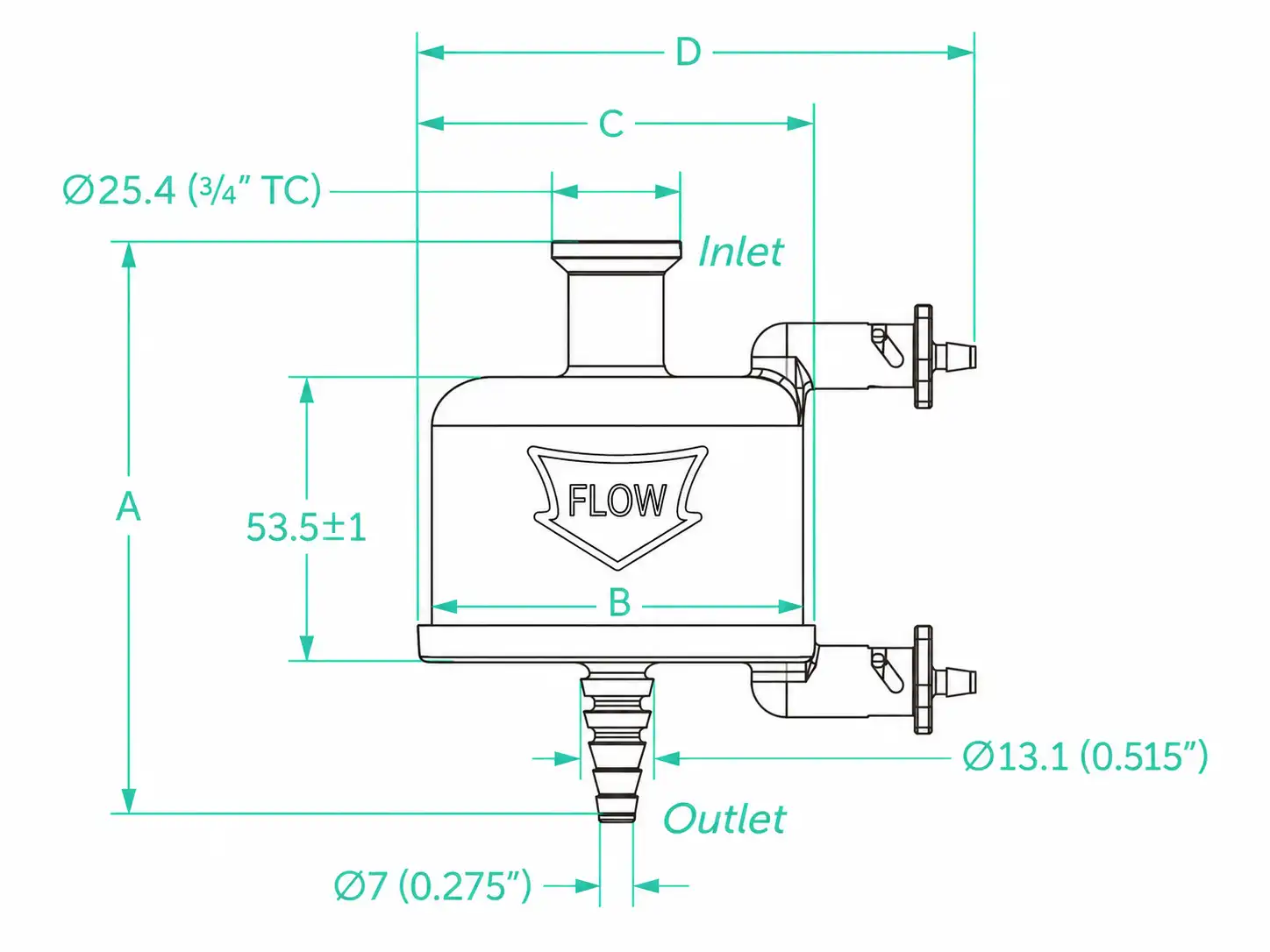

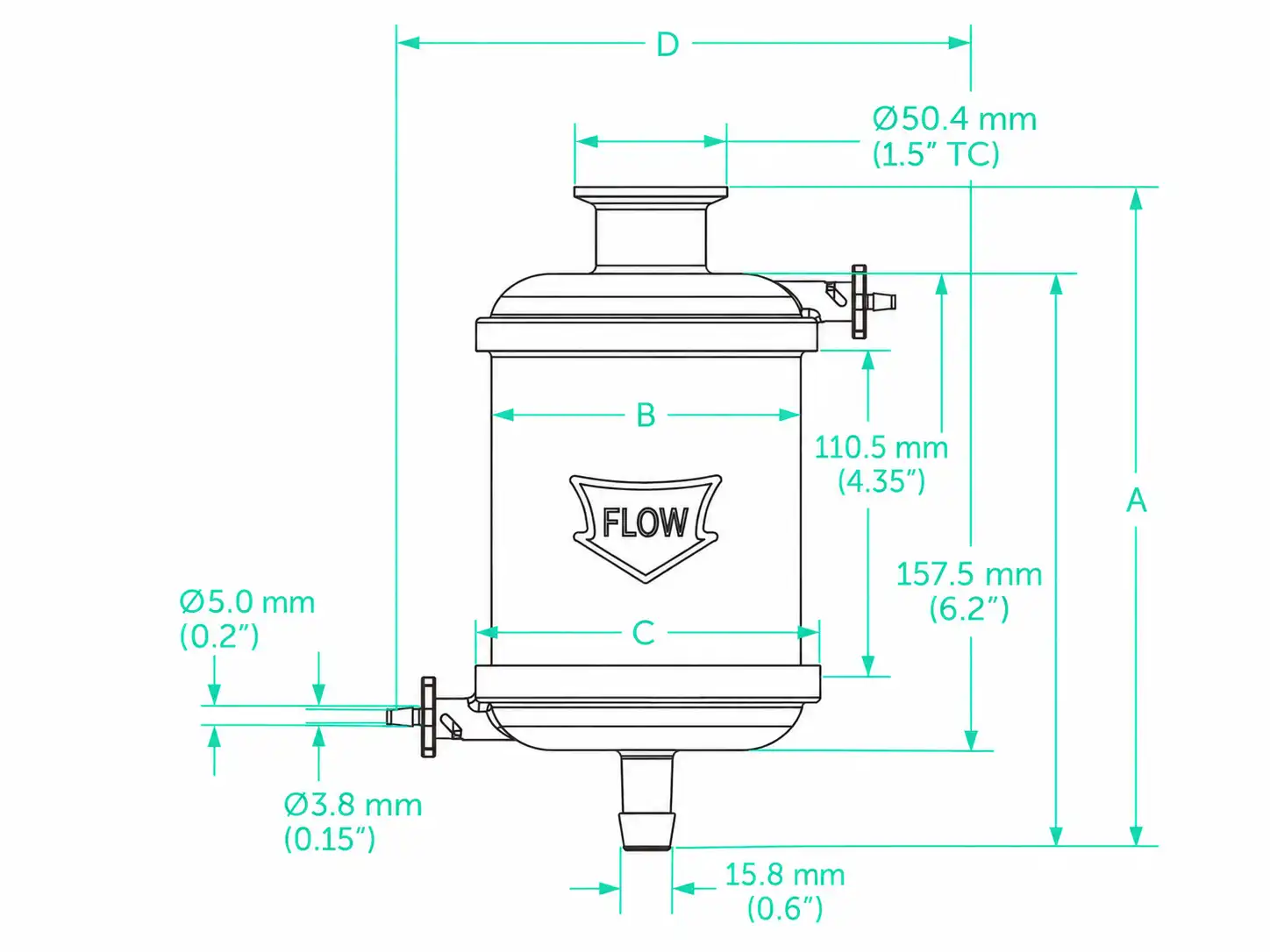

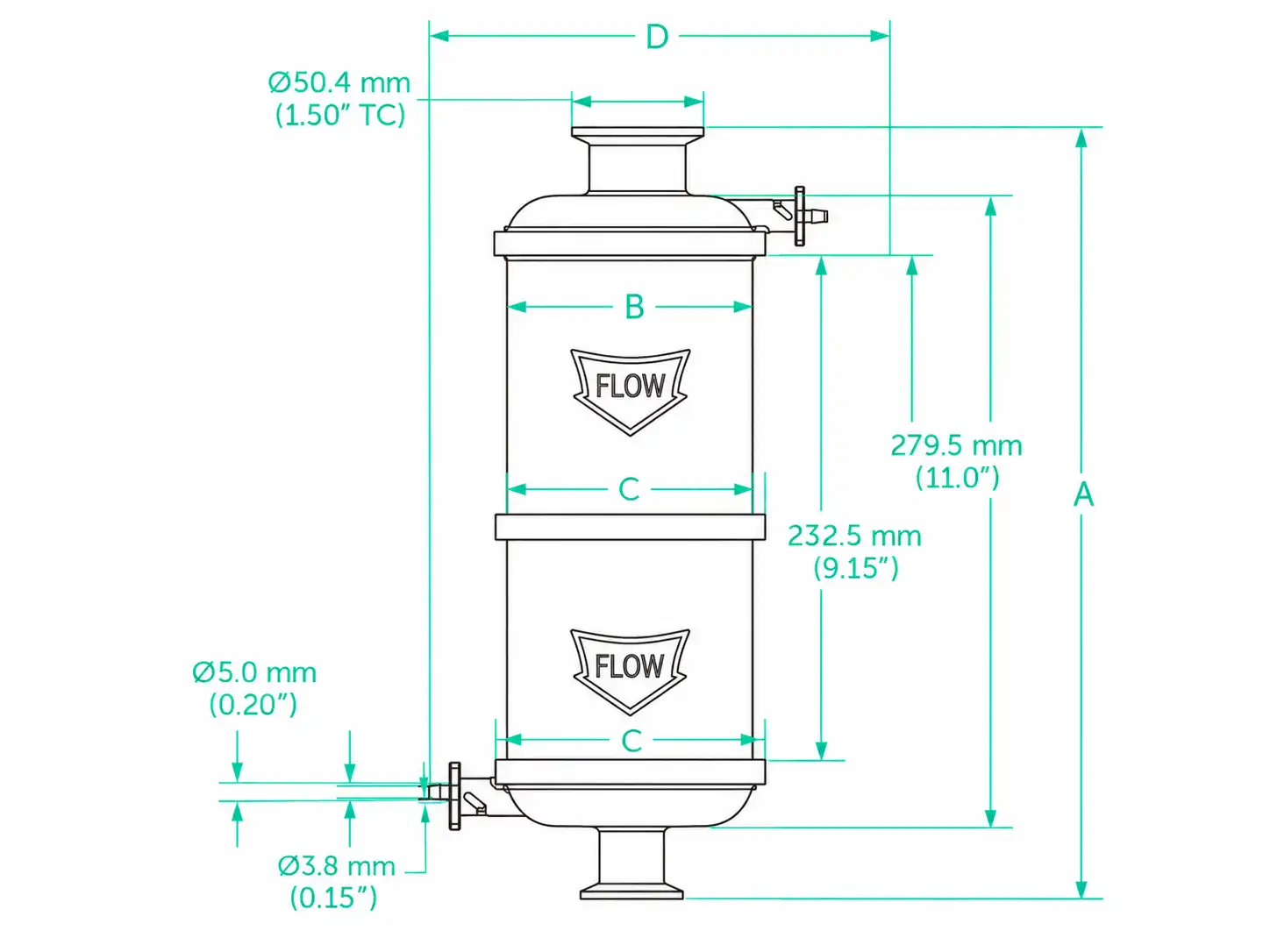

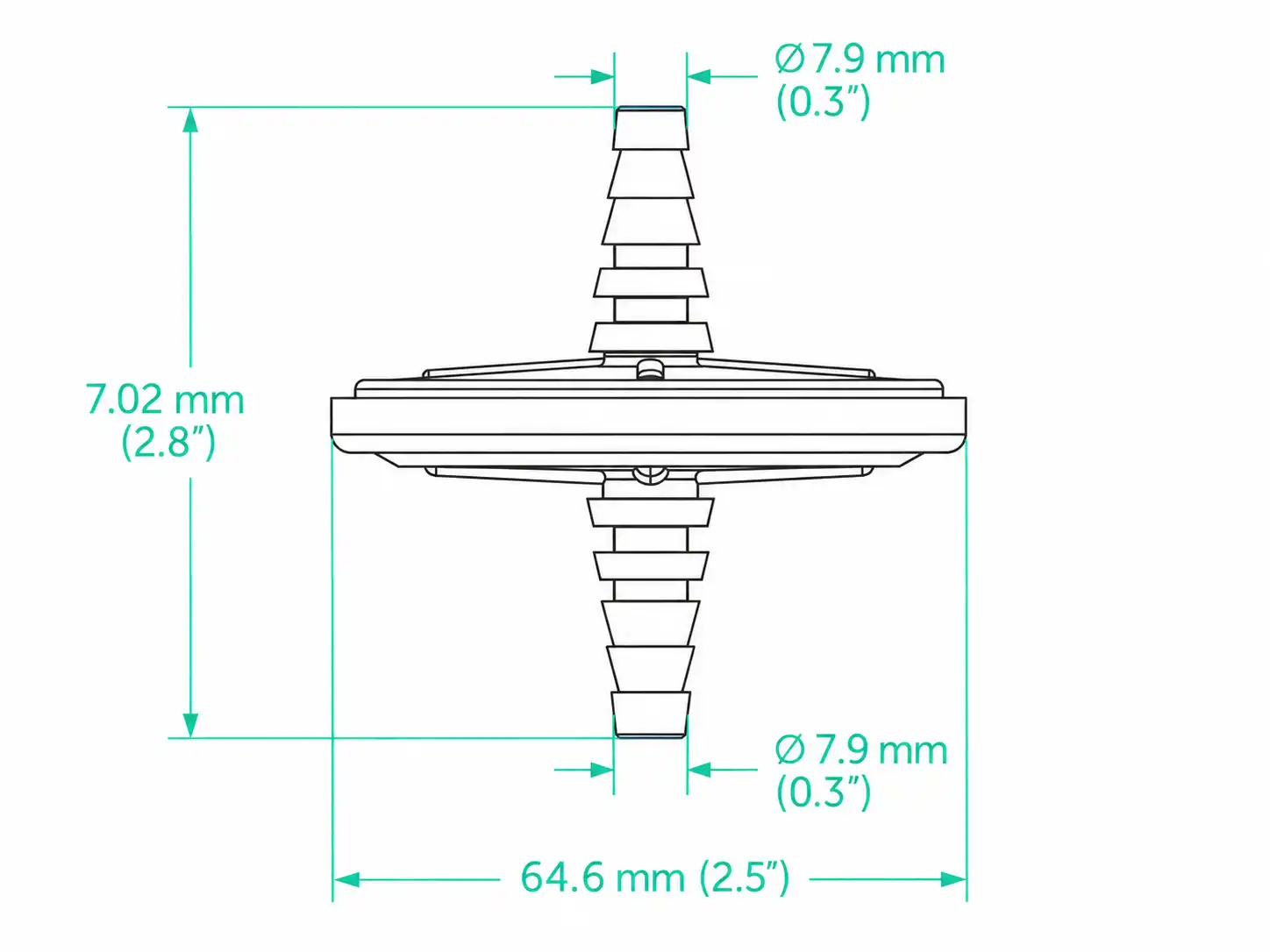

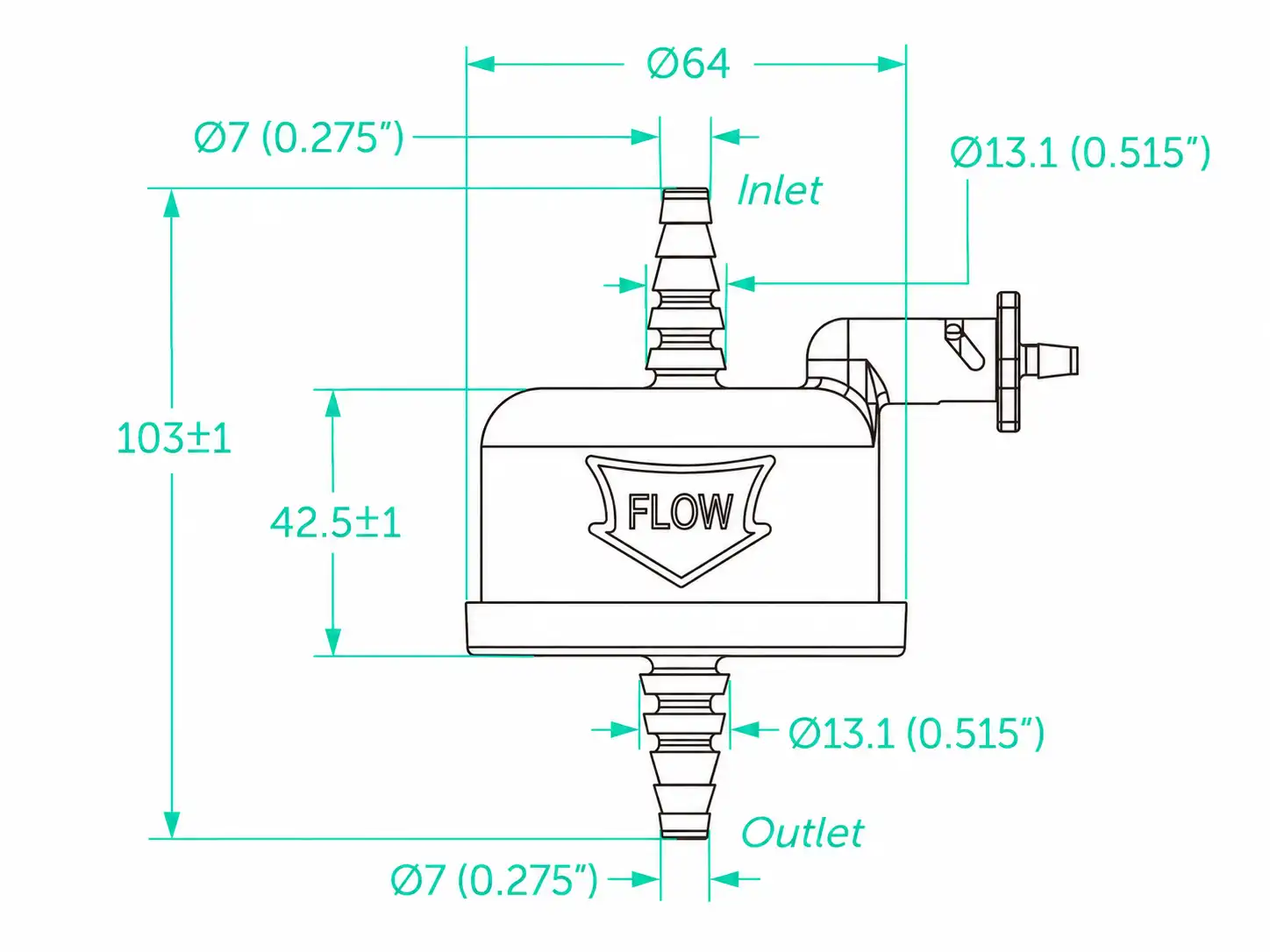

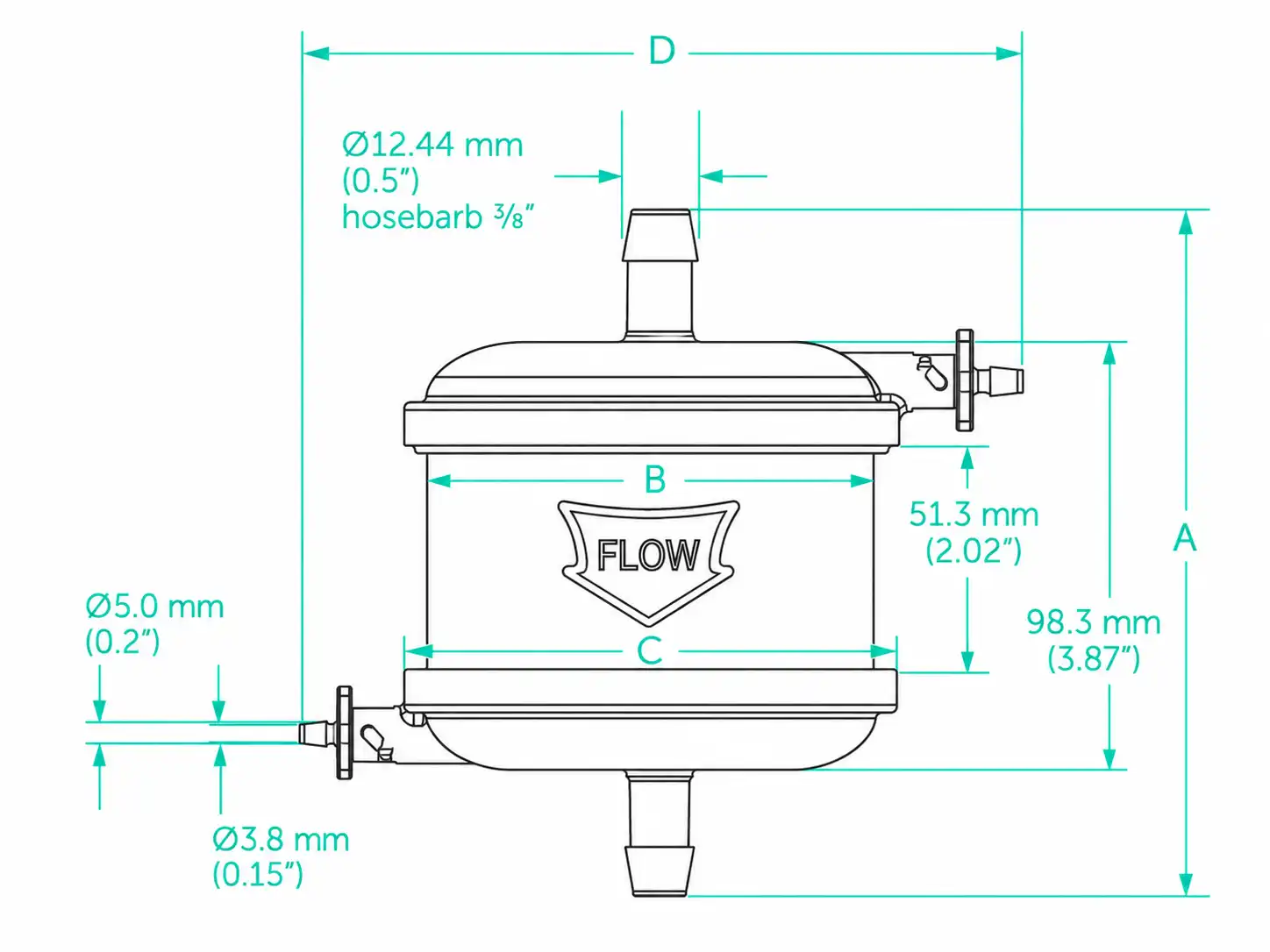

Drawings

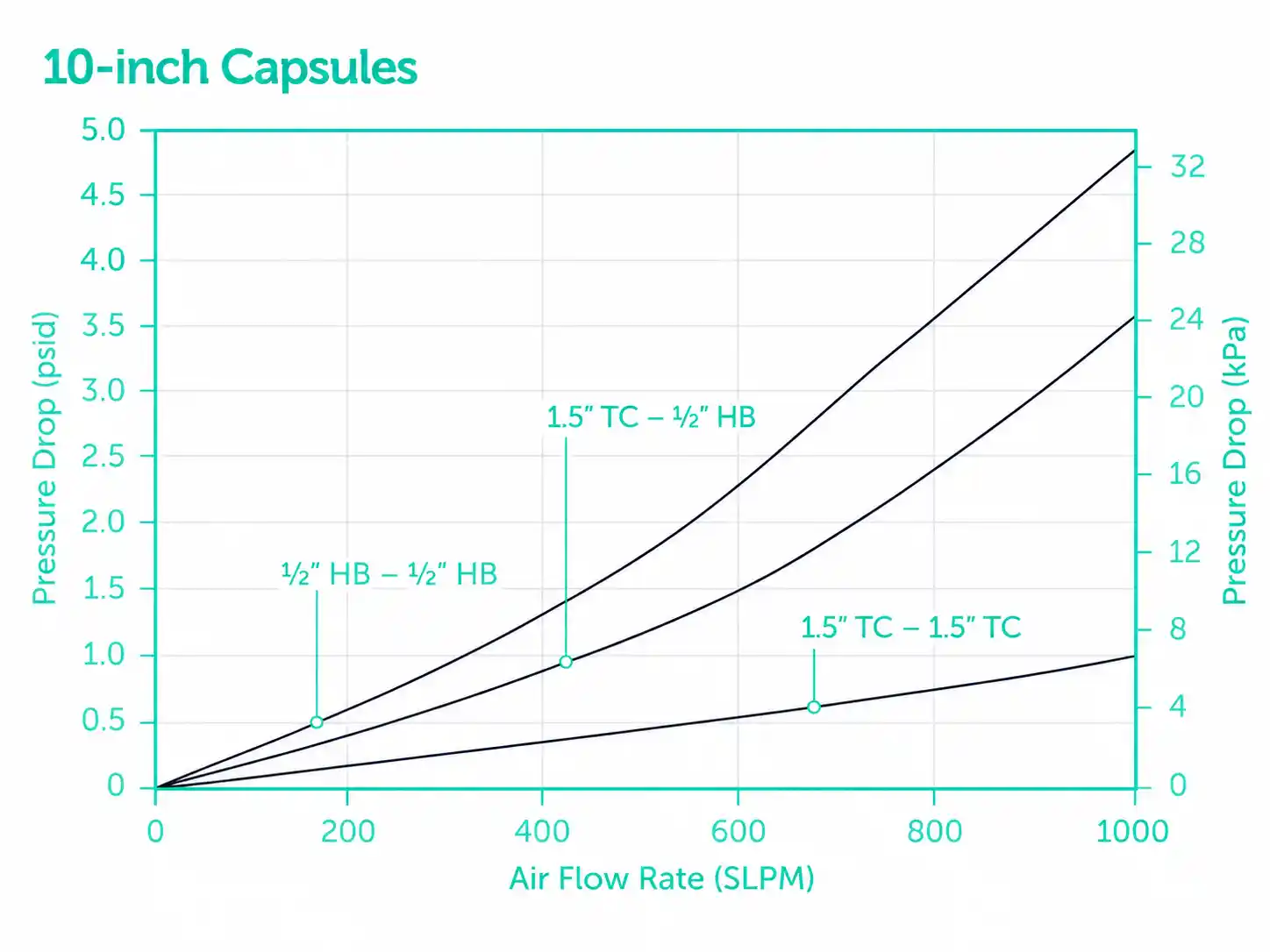

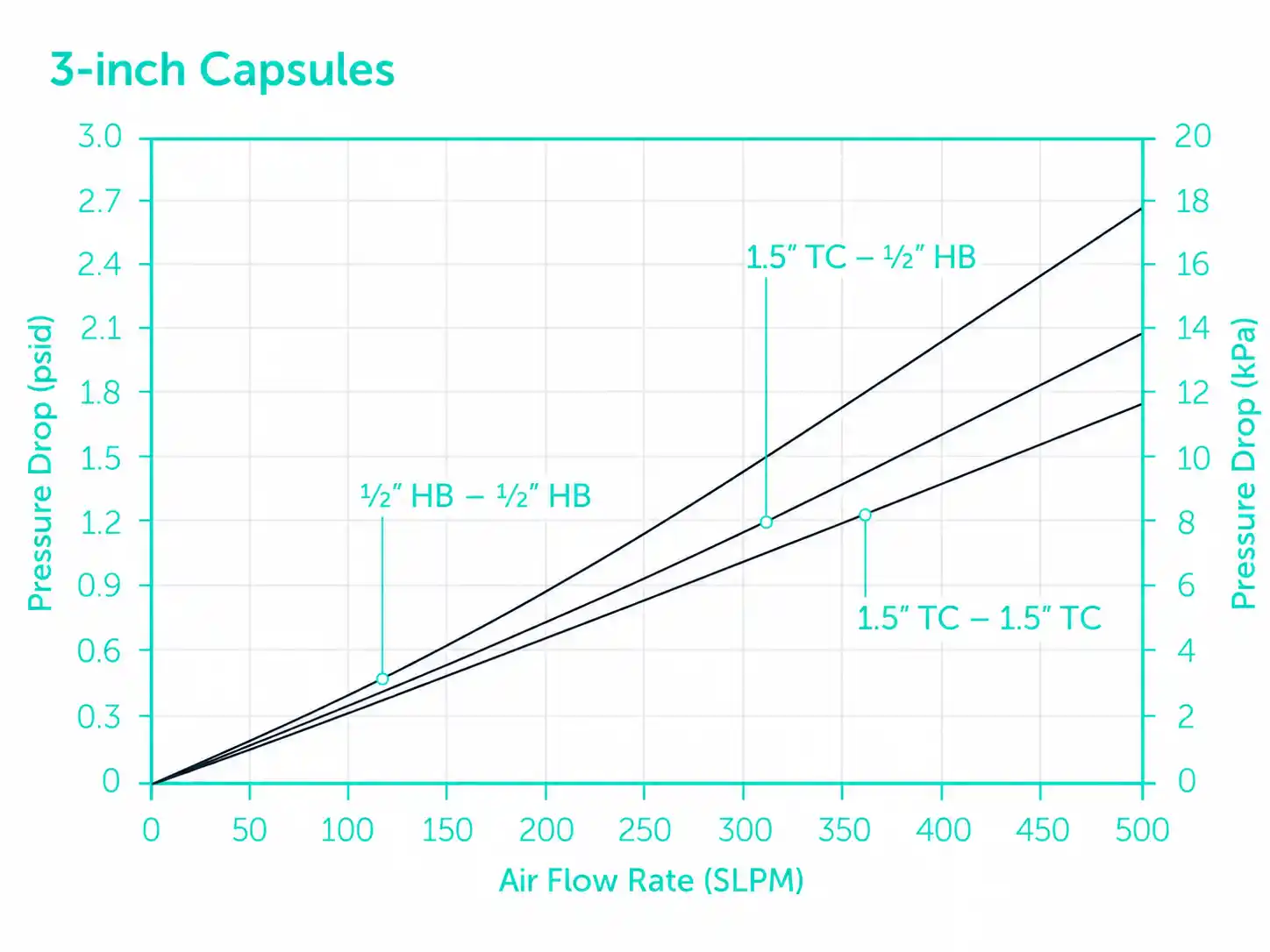

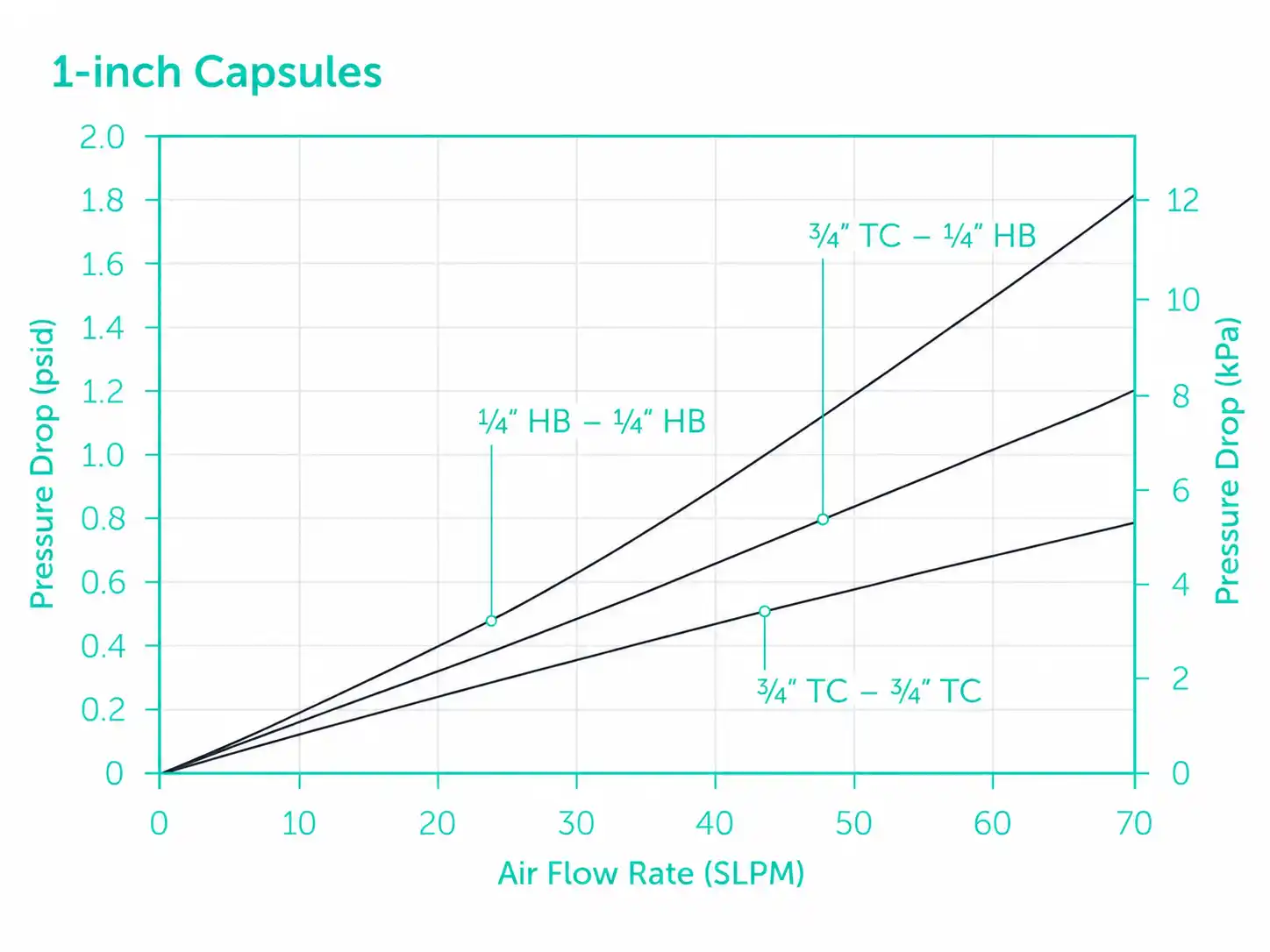

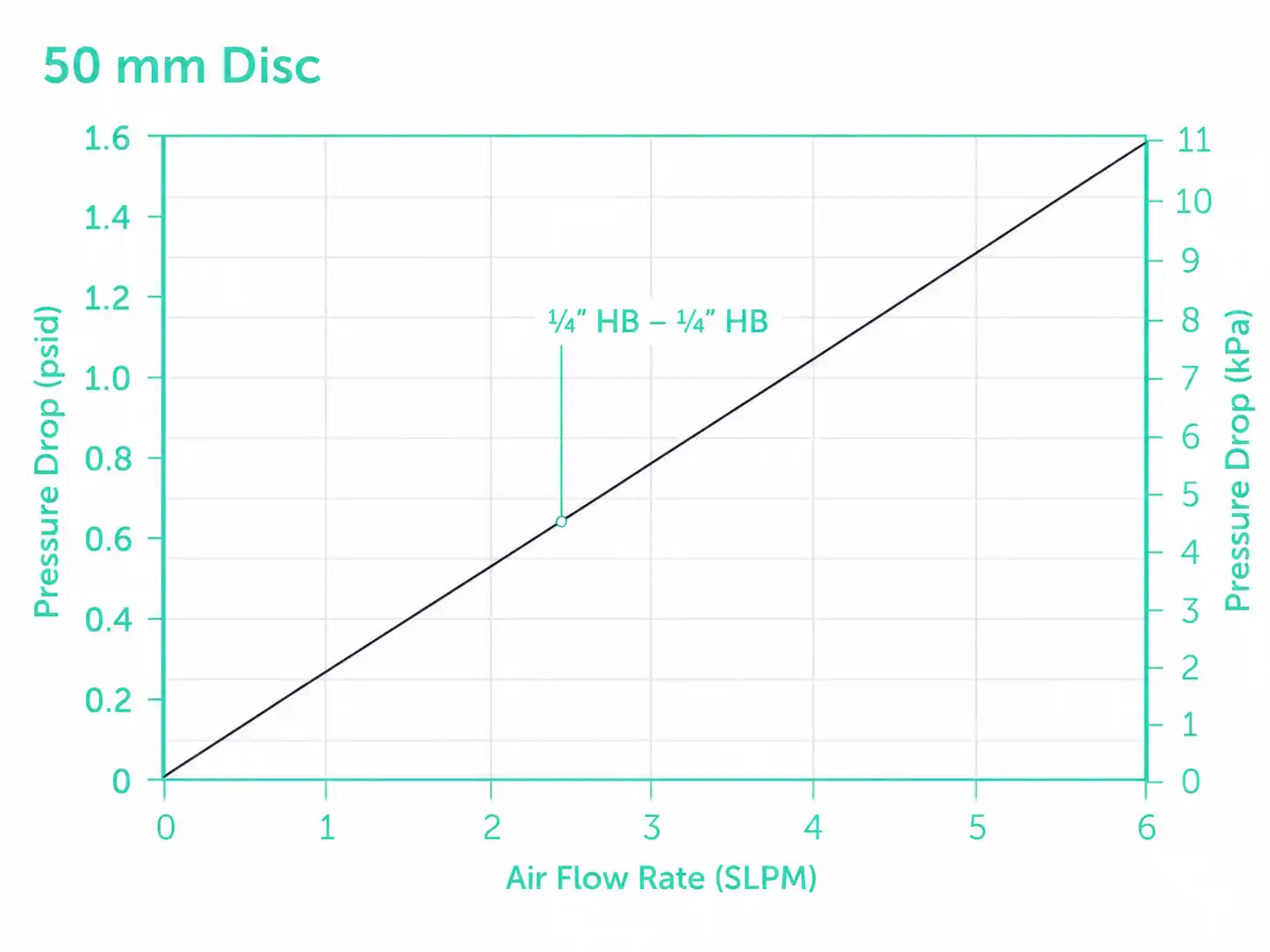

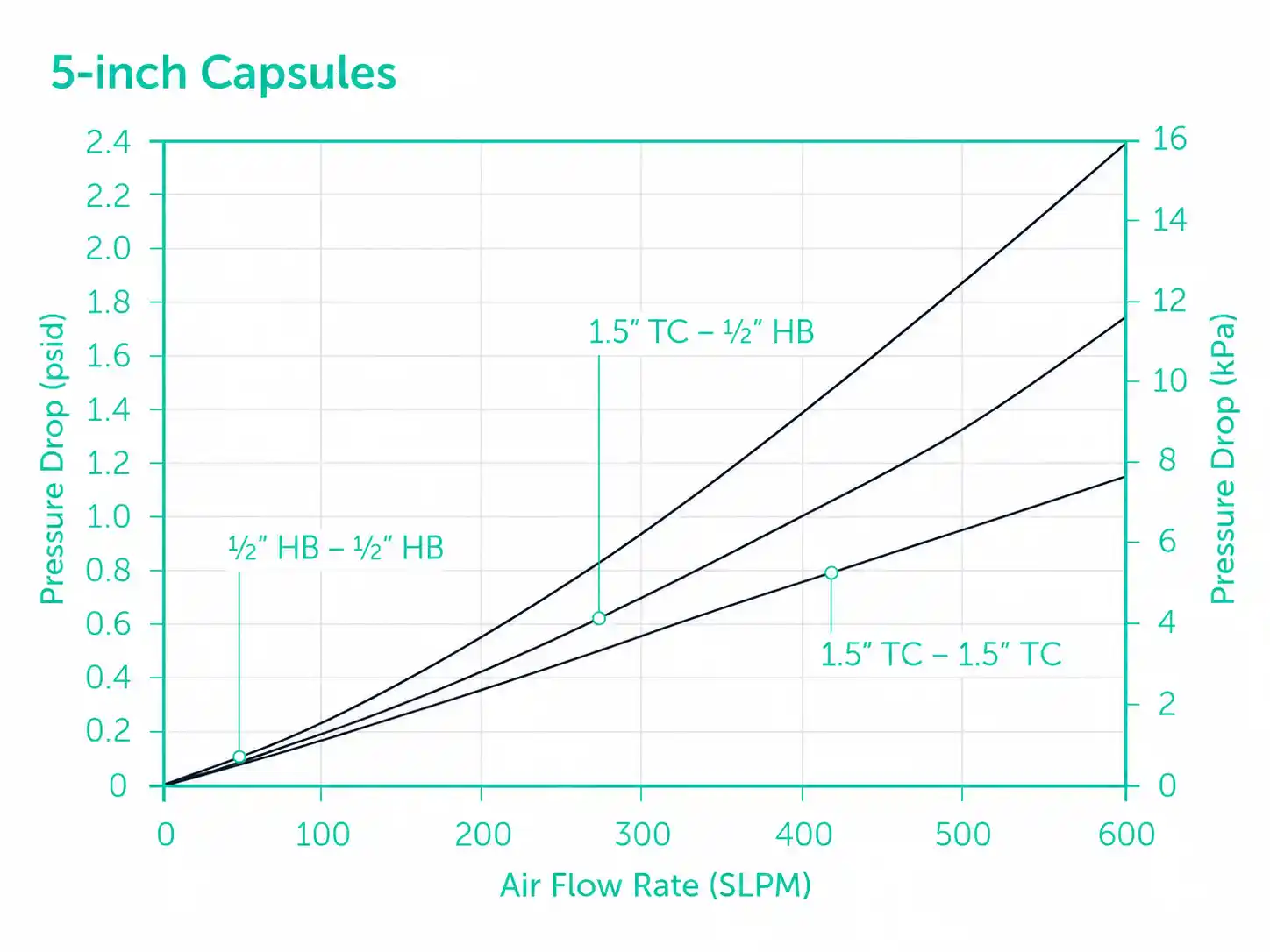

Performance Data
Specifications
Style
- 50mm Disc
- Mini/1"/3"/5"/10" In-Line Capsules
Materials
- Media: Polyethersulfone
- Support: Polypropylene
- Core, cage, end caps: Polypropylene
- O-ring: N/A
- Sealing technology: Mechanical sealing with O-ring
- Polyethersulfone
- Polypropylene
- Polypropylene
- Silicone
- Thermal bonding without adhesives
Pore size
- 0.45+0.22 µm
- 0.65+0.22 µm
- 0.45+0.22 µm
- 0.65+0.22 µm
Normal effective filtration area
- 17.3 cm2
- Mini: 260 cm2
- 1": 560 cm2
- 3": 0.16 m2
- 5": 0.30 m2
- 10": 0.60m2
Integrity test
- Bubble point: N/A
- Water Diffusion @ 40 psi@ 25°C (77°F): N/A
- Mini: ≤ 1.8 mL/min
- 1" ≤ 3.8 mL/min
- 3" ≤ 6.8 mL/min
- 5" ≤ 11.5 mL/min
- 10" ≤ 21.5 mL/min
Maximum operating conditions
- Maximum operating pressure
- Maximum operating temperature
- 80 psi (5.5 bar) @ 25°C (77°F)
- 40 psi (2.8 bar) @ 60°C (140°F)
Multiple sterilization cycles
- 2 cycles of autoclave, 30 min at 130°C (266°F)
Gamma stability
- Gamma irradiation stable up to 45 kGy
Endotoxin releasing
- <0.25 EU/mL as determined by the LAL test, meeting the requirements of USP
Particulates*
- Particulate matter release meets the requirement of USP
Non-fiber releasing
- <0.5 mg/L post gamma and after a water flush, meeting the requirements of USP
TOC
- <0.5 mg/L post gamma and after a water flush, meeting the requirements of USP
Conductivity
- ≤1.3 μS/cm post gamma and after water flush, meeting the requirements of USP
Material toxicity
- All components meet the requirements of the USP , Biological Reactivity Test and the USP Reactivity Test for Class VI Plastics
Animal free
- Raw materials used to manufacture this product are not animal derived, meeting the EU directive for animal free CPMP EMA/410/01 and 21 CFR parts 189.5
Extractables
- Tested according to BioPhorum Operations Group (BPOG) guideline. Report is available upon request.
Quality
- Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system
Order Guide Information
| Please choose: | Industry | Retention rating (µm) | End Cap | Length (inch) | O-Ring | Skeleton |
|---|---|---|---|---|---|---|
| Food | 0.1 | 222/FIN | 5 | Silicon | PP | |
| Electron | 0.22 | 222/Flat | 10 | EPDM | Heat-Resistant Joints | |
| Pharmacy | 0.45 | 226/FIN | 20 | VITON | ||
| Chemicals | 0.65 | 226/Flat | 30 | |||
| 1.0 | DOE | 40 |
Date Sheet
Product Documentation
Published SEP 19, 2025
PES Liquid Capsule Filter
Download PDF
Send your process conditions
TAKE IT TO THE NEXT LEVEL.
Process fluid, filtration objectives, pore size rating, contaminant characteristics, operating temperature and pressure, flow rate, connection type, seal material, sterilization requirements, and existing cartridge specifications (if applicable).
